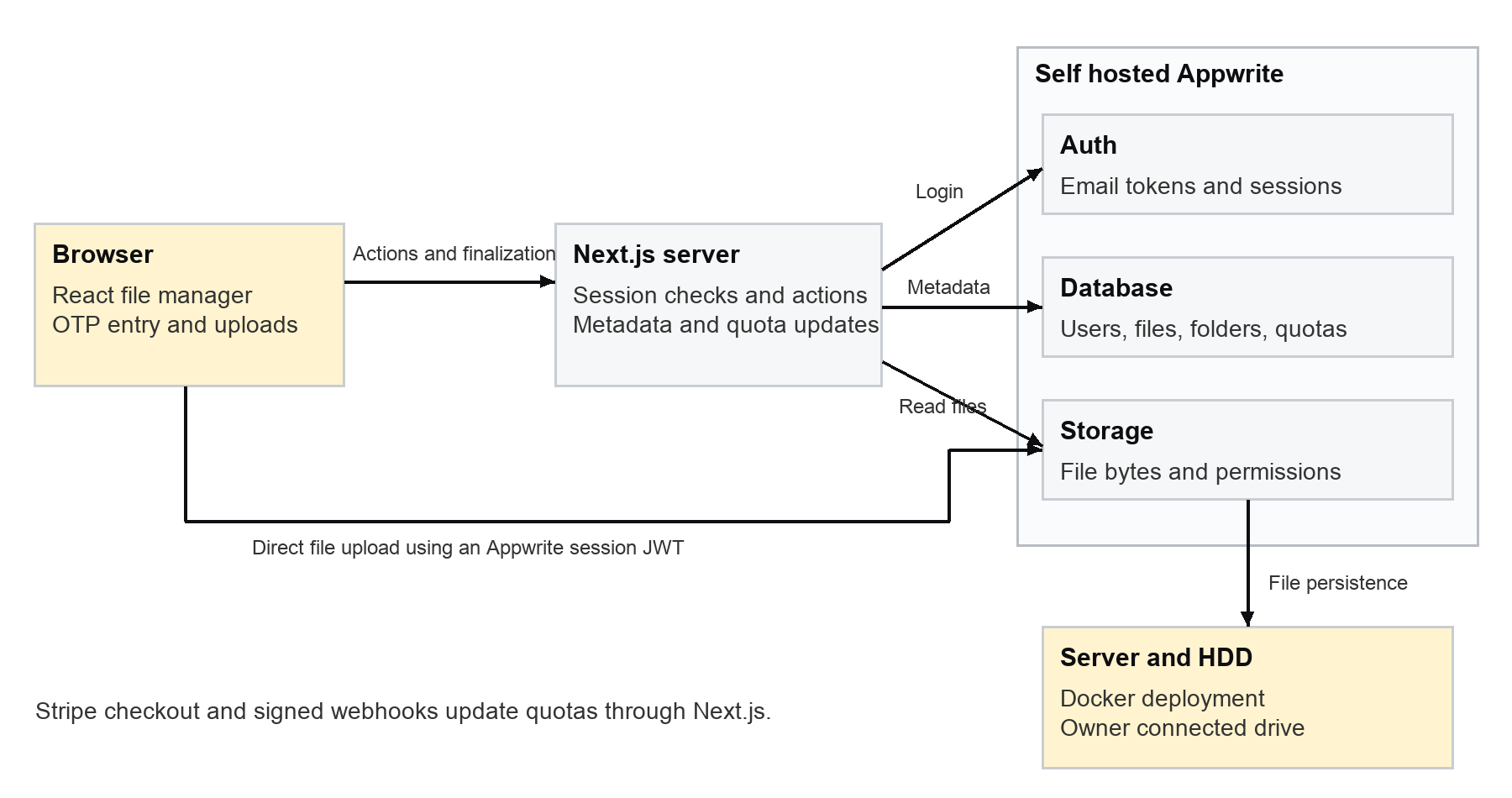

MangoByte architecture connecting the browser and Next.js server to Appwrite auth, database and storage, backed by a server and HDD

MangoByte architecture connecting the browser and Next.js server to Appwrite auth, database and storage, backed by a server and HDD

The primary upload path sends bytes directly from the authenticated browser to Appwrite Storage. A Next.js server action then validates ownership and remaining quota, records file metadata and refreshes the library.

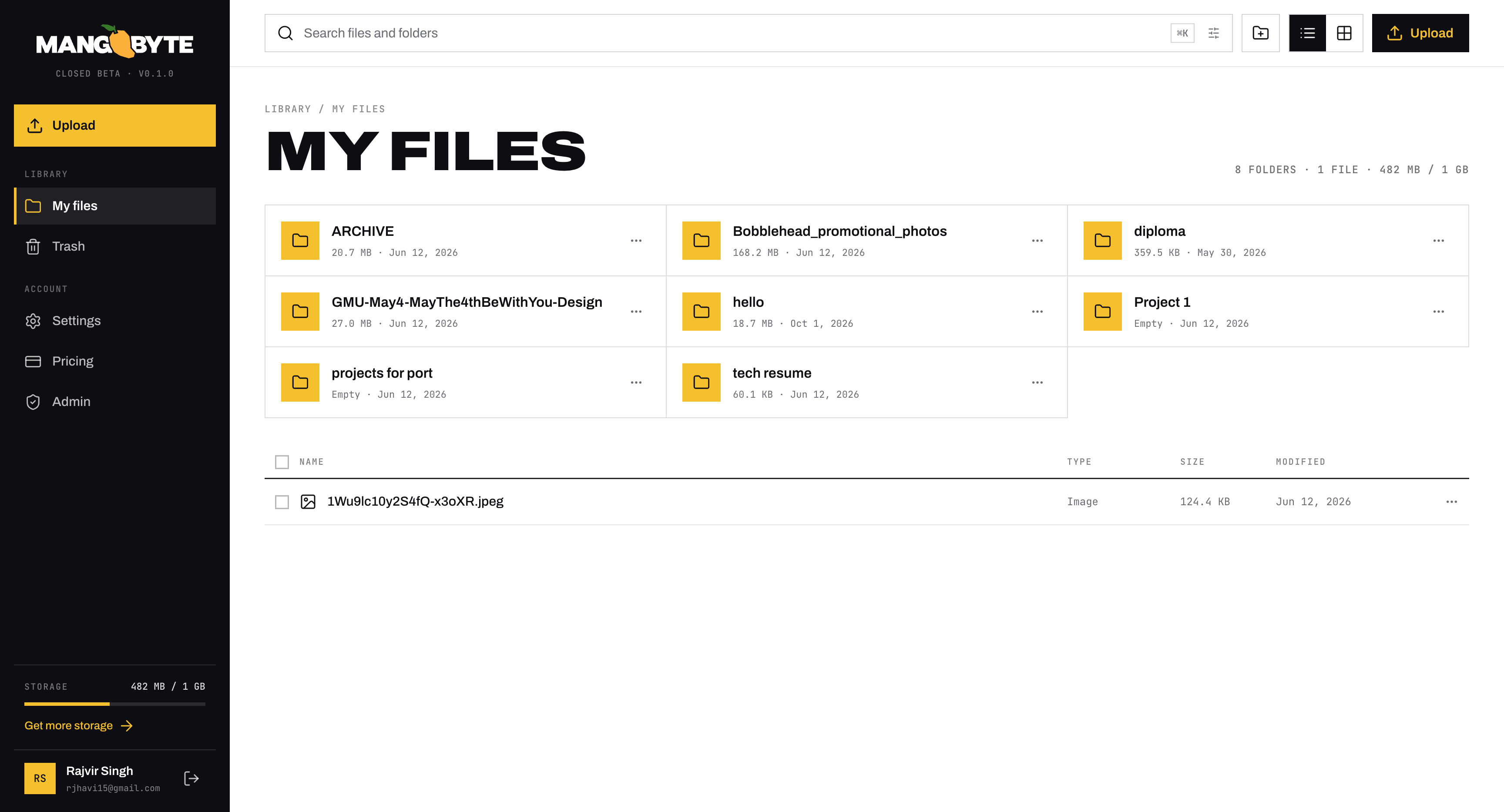

Signed-in MangoByte dashboard showing folders, a file list, search, upload controls and 482 MB of 1 GB storage used

Signed-in MangoByte dashboard showing folders, a file list, search, upload controls and 482 MB of 1 GB storage used

The signed-in dashboard separates dark navigation from the white file workspace. Folder cards establish structure above the file list, while search, view controls and upload stay at the top. Visible storage usage connects the current library to the account allowance.

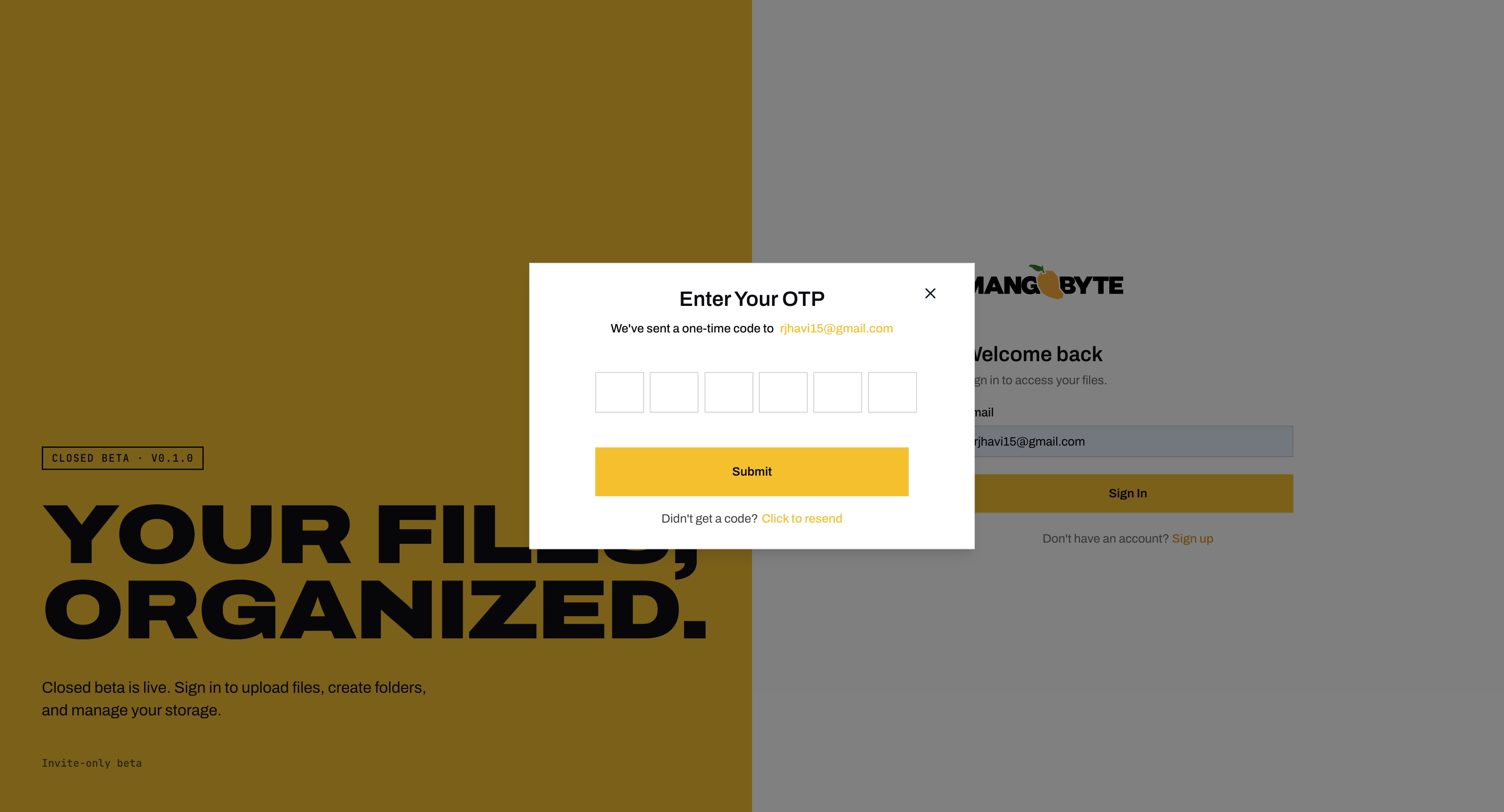

MangoByte email verification dialog with six code fields, a Submit button and a resend link over the sign-in screen

MangoByte email verification dialog with six code fields, a Submit button and a resend link over the sign-in screen

Email verification stays in a focused dialog over the sign-in screen. Six code fields, a clear Submit button and a resend link make the next action visible. Users do not need a MangoByte password; access depends on receiving the code in their inbox.

Rajvir Singh.[ BACK TO WORK ]
  • statusclosed beta v0.1.0
  • stacknext.js + appwrite
  • hostingself-hosted
  • roledesign + full-stack

01 / CLOUD STORAGE

MangoByte

One familiar place for family and friends to keep their files, with hosting I manage for them.

Visit the websitemangobyte.app · Opens in a new tab

> PROJECT SUMMARY

I built MangoByte for family and friends who were juggling several cloud storage services and subscriptions. It brings their files into one familiar drive, with hosting I manage for them.

I designed and built email sign-in, folders, search, upload progress and file recovery. The product is live in closed beta with roughly 7–10 users, with free storage and paid plans at $2 and $5 per month.

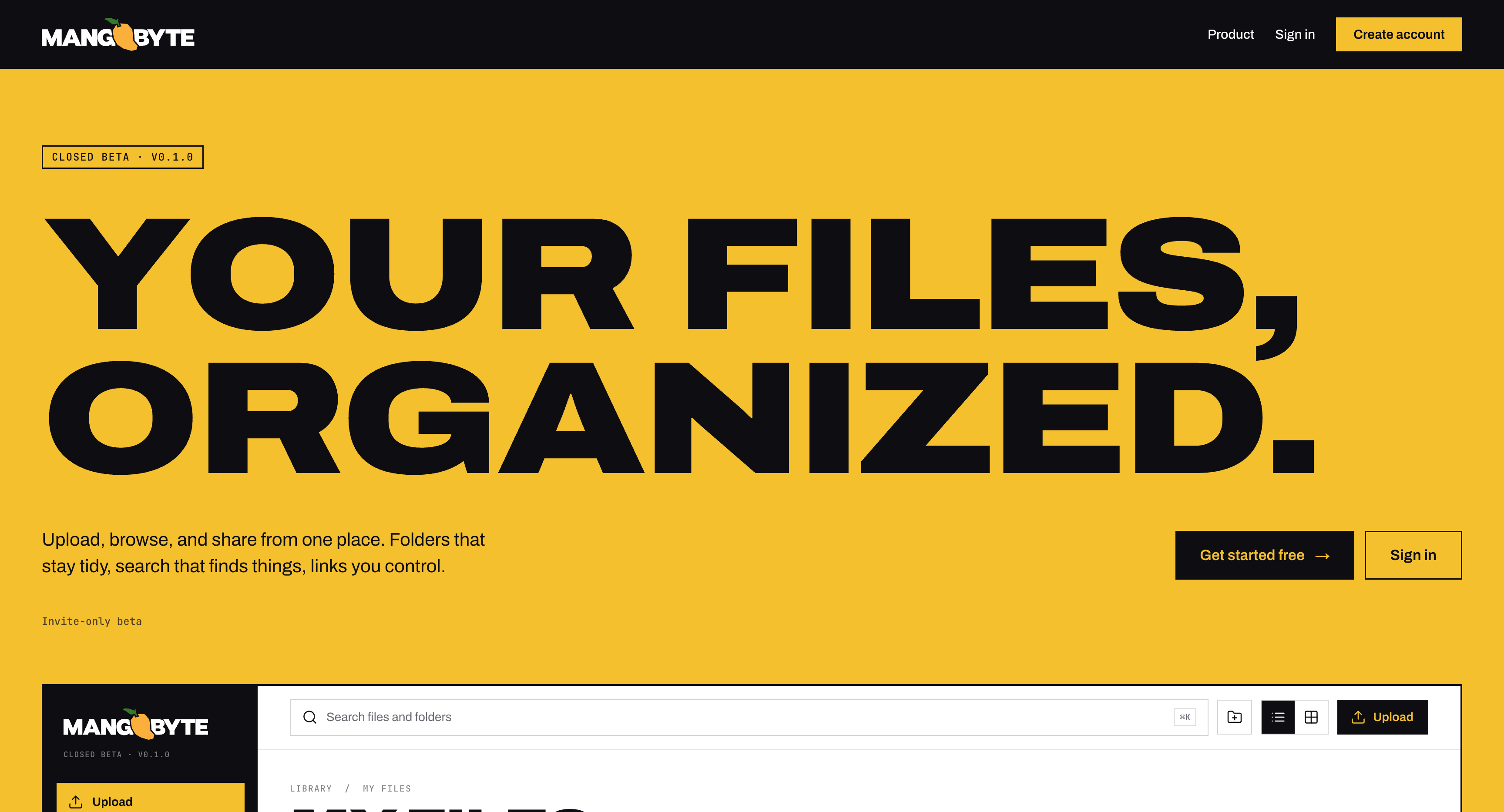

MangoByte homescreen with yellow background, Your files organized headline and account creation controls

The story

  • DESIGN
  • FRONT-END
  • FULL-STACK

MangoByte grew out of a practical need: my family and friends were managing files and subscriptions across several cloud services. I designed, built and operate a familiar drive that gives them one place to manage their files.

  1. 01PURPOSEGive family and friends one place for files scattered across services. jumpDESIGN
  2. 02WORKFLOWMake signing in, uploading and finding files feel familiar. jumpDESIGN
  3. 03SYSTEMSupport personal file libraries on infrastructure I manage. jumpFULL-STACK
  4. 04PRODUCTBring the drive to a small user group with free and paid storage. jumpFULL-STACK

The problem

  • DESIGN

Problem statement

My family and friends were juggling files across Google Drive, OneDrive and iCloud. Many were not comfortable managing several services, and some ended up paying for four or five subscriptions. I built MangoByte to give them one familiar place to keep, organize and find files, with infrastructure I manage for them.

Before MangoByte

  • Files were spread across Google Drive, OneDrive and iCloud.
  • People had to switch between services to find and manage their files.
  • Less tech-savvy family members and friends found multiple storage services difficult to manage.
  • Some were paying for four or five subscriptions across those services.

Architecture

  • FULL-STACK

The primary upload path sends bytes directly from the authenticated browser to Appwrite Storage. A Next.js server action then validates ownership and remaining quota, records file metadata and refreshes the library.

  1. SELECT

    Browser SDK

  2. TRANSFER

    Appwrite Storage

  3. VALIDATE

    Next.js action

  4. RECORD

    Metadata + quota

  5. REFRESH

    File library

One library, with hosting managed for the user

Authentication, file storage and searchable file information work together behind a familiar drive interface. I operate the server so family and friends can focus on their files rather than infrastructure.

Support the everyday file lifecycle

The system supports uploading, organizing, finding and recovering files. Folders and search make the library navigable, while Trash gives users a way to recover from an accidental deletion.

Connect storage plans to the experience

Free and paid plans provide different storage allowances. Visible usage helps users understand their capacity, and billing connects the selected plan to the space available in their library.

Workflow

  • DESIGN
  • FRONT-END

The core user path in 5 steps.

  1. Enter

    Choose sign in or create an account, then enter an email address.

  2. Verify

    Enter the six-digit email code to create an authenticated session.

  3. Upload

    Review file count and size, upload files or a folder, and watch progress, speed and remaining time.

  4. Organize

    Browse folders and breadcrumbs, search, switch views, preview, download, rename or move files.

  5. Recover

    Restore a mistaken deletion from Trash or permanently remove files when finished.

Interface

  • DESIGN
  • FRONT-END

Screens with design decisions pinned beside them.

The signed-in dashboard separates dark navigation from the white file workspace. Folder cards establish structure above the file list, while search, view controls and upload stay at the top. Visible storage usage connects the current library to the account allowance.
Email verification stays in a focused dialog over the sign-in screen. Six code fields, a clear Submit button and a resend link make the next action visible. Users do not need a MangoByte password; access depends on receiving the code in their inbox.

Make system state visible

Storage usage, batch confirmation, per-file progress and failure details explain what is happening. The browser warns before leaving during an upload, and Trash makes ordinary deletion recoverable.

Keep the drive model familiar

My files, folders, breadcrumbs, search and Trash anchor navigation. List and grid views support different browsing tasks; contextual menus keep file actions nearby. On mobile, navigation becomes a toggleable panel and upload confirmation uses a bottom sheet.

A recognizable, approachable drive

Mango yellow highlights key actions against a clear file workspace. Familiar folders, file lists and visible storage usage make the product approachable for family and friends who are less comfortable managing cloud services.

Stack

  • FRONT-END
  • FULL-STACK
LAYERTOOLWHY
Web appNext.js 15 · React 19 · TypeScriptPages, interactive components, server actions and API routes in one typed project.
AuthAppwrite email OTP + sessionsEmail token delivery and passwordless session creation.
MetadataAppwrite DatabasesAccount, file, folder and quota documents alongside authentication.
StorageAppwrite Storage + HDDBinary files separated from searchable metadata on infrastructure I operate.
RuntimeDocker on my serverA containerized, self-hosted Appwrite backend.
UITailwind CSS 4 · shadcn · RadixShared tokens and reusable forms, dialogs, menus and OTP primitives.
Uploadsreact-dropzone · Appwrite SDKFile selection and direct browser transfers with progress callbacks.
FormsReact Hook Form · ZodForm state and field validation for authentication.
BillingStripeCheckout, billing portal and signed subscription events that update quotas.
Motion / iconsGSAP · LucideLanding reveals, hover feedback and recognizable file actions.

Outcomes

  • DESIGN
  • FRONT-END
  • FULL-STACK
  • Live closed beta serving approximately 7–10 family members and friends.
  • One personal file library for uploading, organizing, finding and recovering files, with hosting managed by me.
  • Real payments accepted for Pro ($2/month, 50 GB) and Pro+ ($5/month, 100 GB), alongside a free 1 GB plan.
